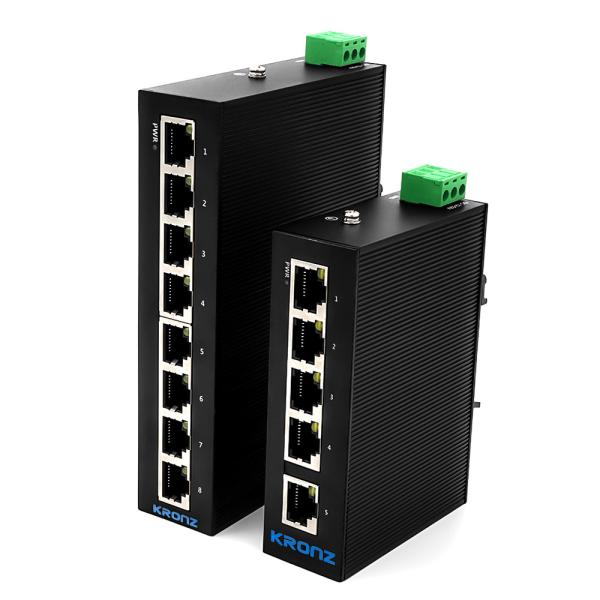

Industrial Ethernet Switches 8-Port Unmanaged 100Mbit/s DIN Rail Network Switch
Product Description
UE-08TC is an unmanaged industrial Ethernet switch, supporting
8-port 10BaseT/100BaseTX . The UE-08TC switch supports a wide
operating
temperature range from -30°C to 75°C can satisfy most of various
harsh environments, and can be installed in control cabinets in a
space-saving way. Features such as DIN rail mounting, wide
temperature operation, IP40 protection rating, and LED indicators
make the UE-
08TC a plug-and-play device, providing reliable and convenient
solutions for customers in their network needs.
Product Feature:
■ Ensure reliable data transmission and long working life
■ Transfer speed automatically adjustable via Auto-Negotiation
function
■ Half Duplex/Full Duplex,Auto-crossing
■ Store-and-forward switching mode,supporting multiple protocols
■ High quality and reliability, MTBF:300,000 hours
■ DC 12-52V power input,with reverse-polarity protection
■ Lightning surge impact protection: 5000A (8/20μs)
Technical Data
Products description | 8-port unmanaged Industrial-grade Ethernet switch | |
Port description | 8 x RJ45 female 8 pin,8-port 10/100Base-T(X) MDI/MDI-X auto-crossover,auto-negotiation | |
Network protocol | IEEE 802.3 10BaseT IEEE 802.3u 100Base TX/FX IEEE 802.3x - flow control | |
Environmental conditions | Operating temperature | -30~75°C(-22~167°F) |
Storage temperature | -40~75°C(-40~167°F) | |
Relative humidity | 5% ～ 95%( no condensation) | |
| MTBF | 300,000 hours | |
Power | Input voltage | DC12-52V |
Connection terminal | Removable screw terminals block | |
Overload-current | Present | |
| Reverse-polarity protection | Present | |
Mechanical characteristics | Housing | Metal |
Protection rating | IP40 | |
| Mounting | DIN-rail,wall | |
Cooling method | Natural cooling, fanless | |
Weight | 0.36Kg | |
Size | 141x 89x 43mm (L x W x H) | |
Standards: | EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD) :±8kV contact discharge, ±12kV air discharge IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT) : Data line : ±4kV CM//±2kV DM ; IEC(EN)61000-4-5(Surge) : Data line : ±4kV CM//±2kV DM ; IEC(EN)61000-4-6(Conducted Immunity) : 3V(10kHz~150kHz), 10V(150kHz~80MHz) IEC(EN)61000-4-16(Common Mode Conducted ) : 30V cont. 300V,1s IEC(EN )61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | |
Performance | Packet buffer menory | 512 kbit |
MAC address | 1K | |
Power consumption | ＜ 3w | |
| Forwarding mode | Store-and-forward | |
| LEDs | Power indicator | PWR |
Interface | Link status | |
Mechanical Dimension Drawing
|
|
