    Industrial DIN Rail Ethernet Switches 8 Port 10/100/1000Base-T DC12-52V Link Status

    Ask Lasest Price
    Brand Name : KRONZ
    Model Number : U-08TC
    Price : Negotiable
    Certification : CE
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100000 pieces per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Industrial DIN Rail Ethernet Switches 8 Port 10/100/1000Base-T DC12-52V Link Status

    Industrial Ethernet Switches 8 Port 10/100/1000Base-T DIN Rail DC12-52V Link Status


    Product Description


    U-08TC is an unmanaged industrial Ethernet switch, supporting 8-port 10/100/1000BaseT(X) . The U-08TC switch supports a wide range
    operating temperature from -30°C to 75°C, with exceptional ruggedness to adapt to various harsh environments, and can be installed in
    control cabinets in a space-saving way. Features such as DIN rail mounting, wide temperature operation, IP40 protection rating, and LED
    indicators make the U-08TC a plug-and-play device, providing reliable and convenient solutions for customers in their network needs


    Product Feature:

    ■ Ensure reliable data transmission and long working life
    ■ Transfer speed automatically adjustable via Auto-Negotiation function
    ■ Half Duplex/Full Duplex,Auto-crossing
    ■ Store-and-forward switching mode,supporting multiple protocols
    ■ High quality and reliability, MTBF:300,000 hours
    ■ DC 12-52V power input,with reverse-polarity protection
    ■ Lightning surge impact protection: 5000A (8/20μs)

    Technical Data


    Products description
    8-port unmanaged industrial ethernet switch
    Port description
    8 x RJ45 female 8 pin,8-port 10/100/1000Base-T(X)
    MDI/MDI-X auto-crossover,auto-negotiation
    Network protocol
    IEEE802.3,IEEE802.3i 10Base-T; IEEE802.3u100Base-TX/FX
    IEEE802.3ab1000Base-T;IEEE802.3x ; IEEE802.3at
    IEEE802.3z1000Base-X; IEEE802.3af
    Environmental conditions
    Operating temperature
    -30~75°C(-22~167°F)
    Storage temperature
    -40~75°C(-40~167°F)
    Relative humidity
    5% ~ 95%( no condensation)
    MTBF300,000 hours
    Power
    Input voltage
    DC12-52V
    Connection terminal
    Removable screw terminals block
    Overload-current
    Present
    Reverse-polarity protectionPresent
    Mechanical characteristics
    Housing
    Metal
    Protection rating
    IP40
    MountingDIN-rail,wall
    Cooling method
    Natural cooling, fanless
    Weight
    0.36Kg
    Size
    141x 89x 43mm (L x W x H)
    Standards:
    EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A
    EMS :
    IEC(EN)61000-4-2(ESD) :±8kV contact discharge, ±12kV air discharge
    IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz)
    IEC(EN)61000-4-4(EFT) : Data line : ±4kV CM//±2kV DM ;
    IEC(EN)61000-4-5(Surge) : Data line : ±4kV CM//±2kV DM ;
    IEC(EN)61000-4-6(Conducted Immunity) : 3V(10kHz~150kHz),
    10V(150kHz~80MHz)
    IEC(EN)61000-4-16(Common Mode Conducted ) : 30V cont. 300V,1s
    IEC(EN )61000-4-8
    Shock: IEC 60068-2-27
    Freefall: IEC 60068-2-32
    Vibration: IEC 60068-2-6
    Performance
    Packet buffer menory
    512 kbit
    MAC address
    1K
    Power consumption
    < 3w
    Forwarding modeStore-and-forward
    LEDs
    Power indicator
    PWR
    Interface
    Link status

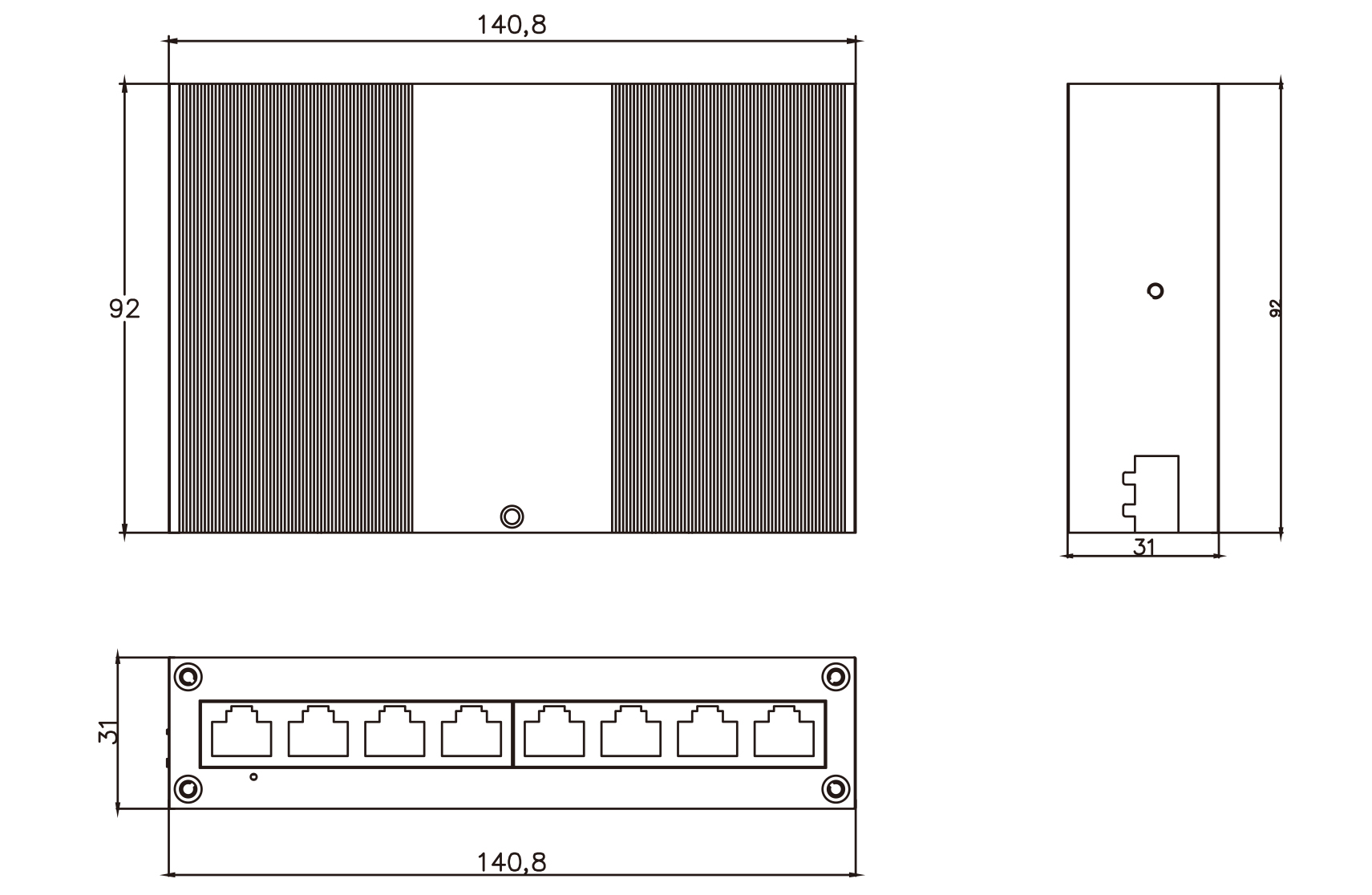

    Mechanical Dimension Drawing
