    NPN Normally Closed Output Inductive Sensors With 3mm Detection Distance

    Ask Lasest Price
    Model Number : IS2-M8NC30-S0C2/B
    Brand Name : KRONZ
    Price : Negotiable
    Certification : CE
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100000 pieces per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    NPN Normally Closed Output Inductive Sensors With 3mm Detection Distance

    Inductive Sensor with 3mm Detection Distance and NPN Normally Closed Output


    Product Features:

    ■ Installation type: Quasi-flush

    ■ Sensing range Sn:3mm

    ■ Output function: NPN Normally Closed

    ■ Supply voltage: 10-30VDC

    ■ Connection method: 2 meter cable

    ■ Housing material: Stainless steel


    Technical data


    Installation type
    Quasi-flush
    Sensing range Sn
    3mm
    LED display
    Yes
    Connection method
    2 meter cable
    Shell
    Stainless steel
    Working voltage
    10-30VDC
    Allowable ripple voltage
    <10%
    No load current
    <10mA
    Max. load current
    200mA
    Current drop
    <0.01mA
    Voltage drop
    <1.5V
    Switching frequency
    1kHz
    Response time
    0.2ms
    Switched reluctance
    <15%sr
    Repeat accuracy
    <1.0%sr
    Protection grade
    IP67
    Ambient temperature
    -25℃ to +70℃
    Temperature drift
    <10%sr
    Short-circuit protection/Reverse polarity protection
    Yes
    Overload current protection
    220mA
    Sensing surface material
    PBT
    Connection method
    2 meter cable

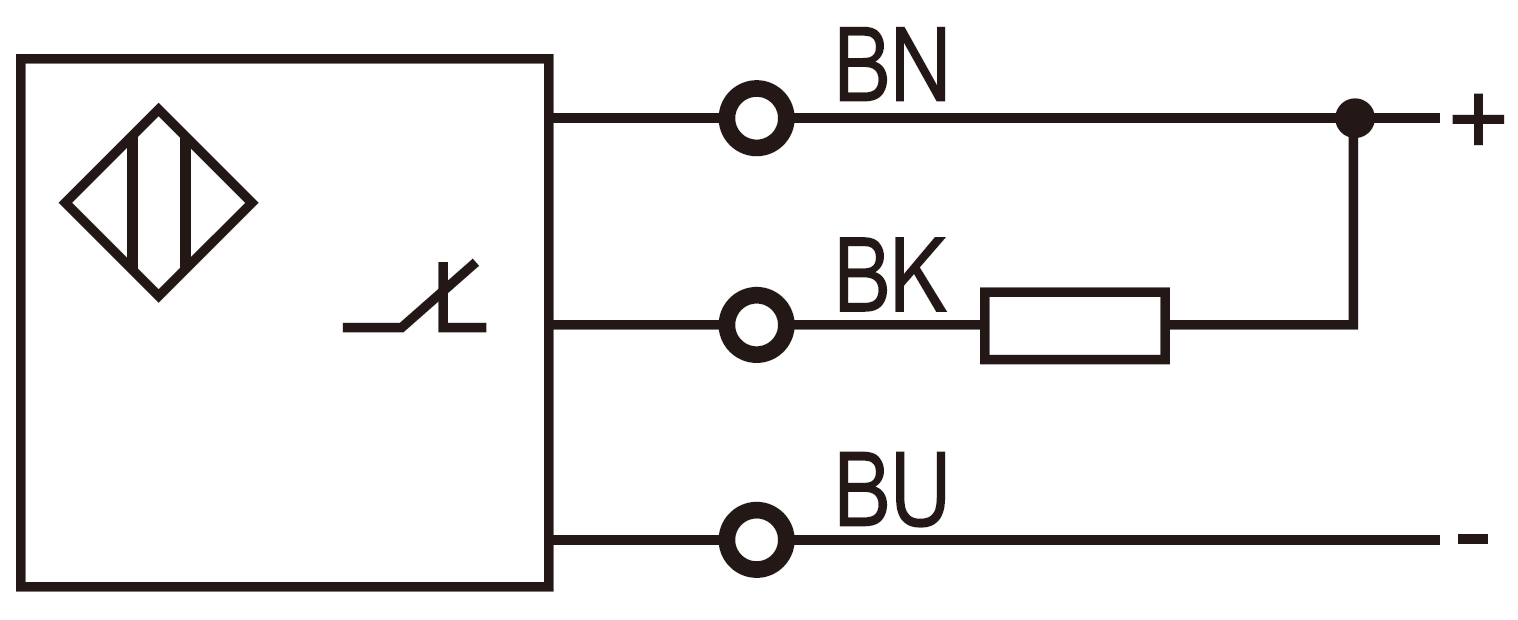

    DimensionConnecting Diagram
