Optical Fiber Sensors NPN/PNP Type Cable M8 Connect Method Intelligent Digital
Product Feature:
◆ Four modes are provided for flexible selection according to different applications (MEGA/SUPER/ FINE/HIGH SPEED).
◆ It can automatically complete the setting of the best brightness and threshold according to various workpiece surfaces.
◆ It has strong stability and high response speed (up to 50 μs at the highest).
◆ It has the functions of light intensity self-adaptation, optical power self-compensation, zero point migration, and delay.
Technical Data
Type | Opening light single-path output | ||
Model | NPN | BFH-23N | BFH-23NB |
PNP | BGH-23P | BGH-23PB | |
Connect method | Cable | M8 | |
Light source | Red light-emitting diode LED tube body | ||
Response time | MEGA: 8ms Opening enhanced anti-light interference response time is
13ms SUPER: 8ms Opening enhanced anti-light interference response
time is 1.6ms FINE: 250μs Opening enhanced anti-light interference
response time is 400μs HSP:50μs Opening enhanced anti-light
interference response time is 200μs | ||
Output selection | LIGHT-ON/DARK-ON (switch selection) | ||
Delay function | Disconnection delay timer / Activation delay timer / Single-shot
timer | ||
Control Output | NPN | NPN open-collector 24V;output Max:100mA; residual voltage:1V or
smaller | |
PNP | PNP open-collector 24V;output Max:100mA; residual voltage:1V or
smaller | ||
Protection circuit | Inverse electrode protection (power supply), over-current
protection (output), and over-voltage (output) | ||
Power supply | 12-24VDC±10%,Ripple voltage (p-p) Max 10% | ||
Power consumption | NPN | Regular:Max 900mW(24V,Max 36mA;12V,Max 48mA) Energy-saving mode:
Max 800mW(24V,Max 32mA;12V,Max 39mA) Note: When using the
"highspeed" mode, the power consumption will increase by 160mW
(7mA). | |
PNP | Regular:Max 950mW(24V,Max 39mA;12V,Max 52mA) Energy-saving mode:Max
850mW(24V,Max 35mA;12V,Max 44mA) Note: When using the "high-speed"
mode, the power consumption will increase by160mW(7mA) | ||
Ambient brightness | Incandescent lamp:Max 20000Lux; Incandescent lamp: Max 30000Lux | ||
Ambient teperature | -20~+55° C (No freezing) | ||
Ambient humidity | -35~+85° C(No condensation) | ||
Vibration resistance | 10~55Hz, Composite amplitude 1.5mm,2 hours in each of the X,Y,Z
directions | ||
Impact resistance | 500m/s² , 3 times in each of the X, Y, and Z axis directions | ||
Shell material | PC | ||
Size | 30.3mm(H)x9.8mm(W)x71.8mm(D) | ||
Weight | 50g | ||
Dimension

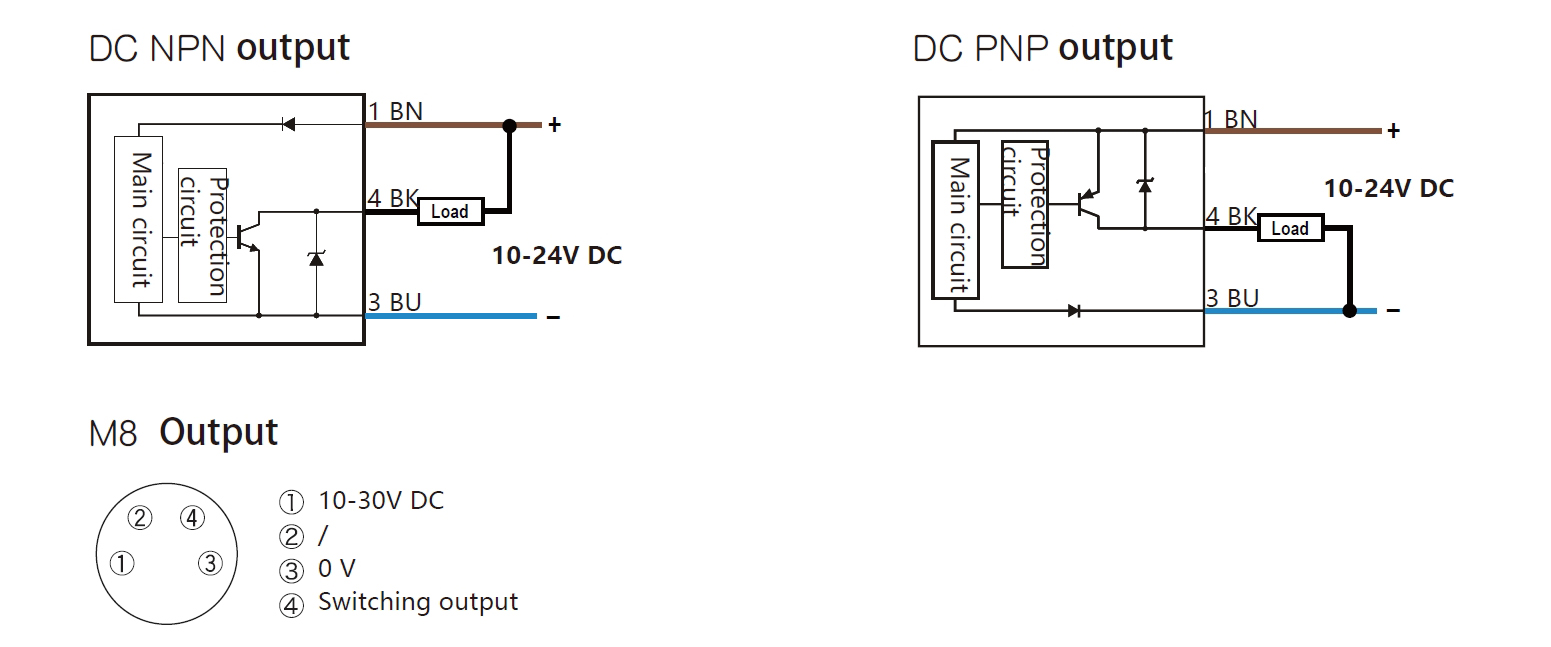

Circuit Diagram
|
|
