| Brand Name : | KRONZ |
| Model Number : | U-08TC |
| Price : | Negotiable |
| Certification : | CE |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 100000 pieces per month |
| Delivery Time : | 5-8 working days |

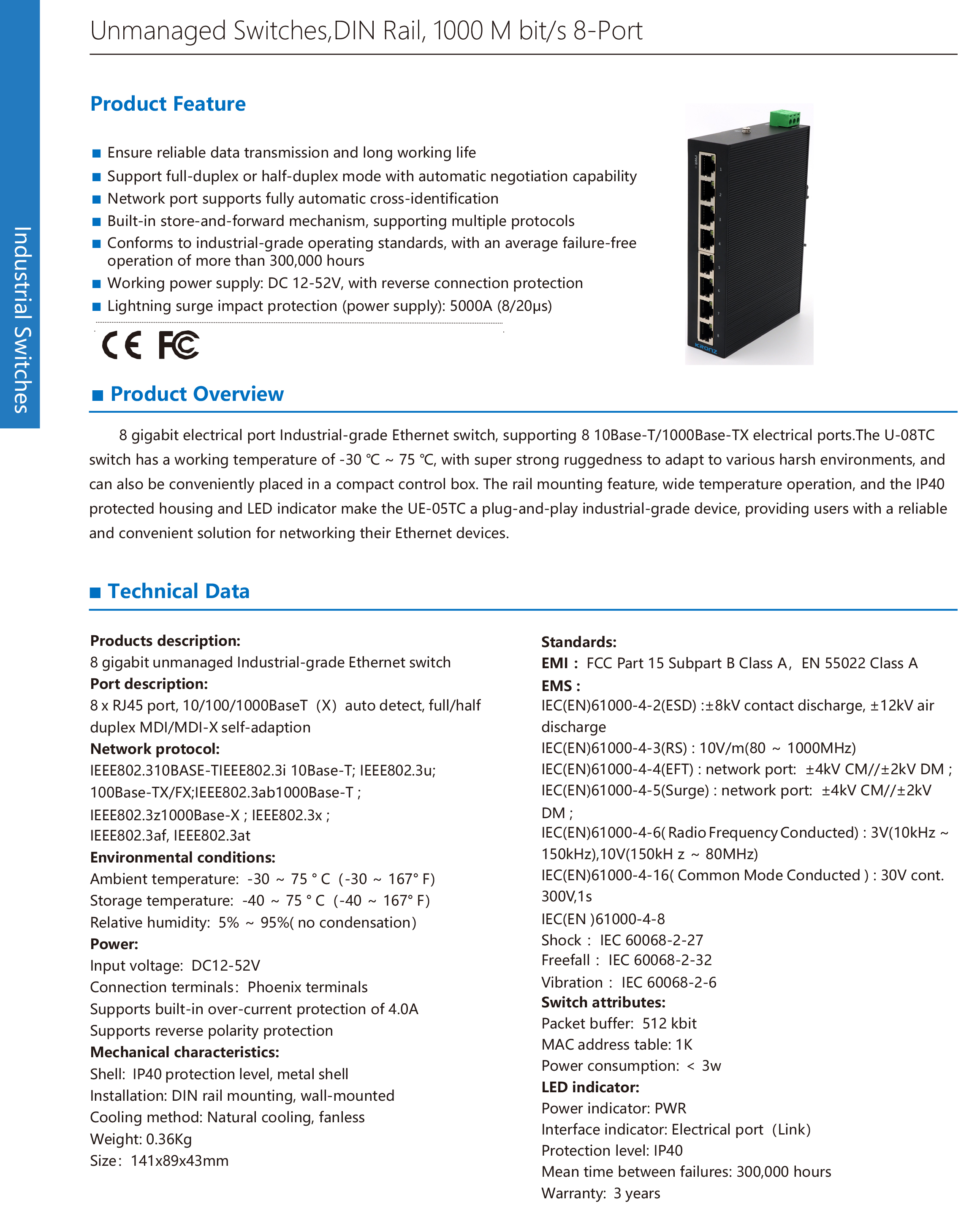

Industrial Ethernet Switches Din Rail Unmanaged Mini 8 Port Switch POE
■ Ensure reliable data transmission and long working life
■ Support full-duplex or half-duplex mode with automatic negotiation capability
■ Network port supports fully automatic cross-identification
■ Built-in store-and-forward mechanism, supporting multiple protocols
■ Conforms to industrial-grade operating standards, with an average failure-free operation of more than 300,000 hours
■ Working power supply: DC 12-52V, with reverse connection protection
■ Lightning surge impact protection (power supply): 5000A (8/20μs)
Products description | 8 gigabit unmanaged Industrial-grade Ethernet switch | |
Port description | 8 x RJ45 port, 1 x 10/100/1000Base-TX up-link electrical port, full/half duplex MDI/MDI-X self-adaption | |
Network protocol | IEEE802.310BASE-TIEEE802.3i 10Base-T; IEEE802.3u;
100Base-TX/FX;IEEE802.3ab1000Base-T ; IEEE802.3z1000Base-X ;
IEEE802.3x ; | |
Environmental conditions | Ambient temperature | -30 ～ 75 ° C(-30 ～ 167 ° F) |
Storage temperature | -40 ～ 75 ° C(-40 ～ 167 ° F) | |
Relative humidity | 5% ～ 95%( no condensation) | |
Power | Input voltage | DC12-52V |
Connection terminals | Phoenix terminals | |
Supports built-in over-current protection of 4.0A | ||
Supports reverse polarity protection | ||
Mechanical characteristics | Shell | IP40 protection level, metal shell |
Installation | DIN rail mounting, wall-mounted | |
Cooling method | Natural cooling, fanless | |
Weight | 0.36Kg | |

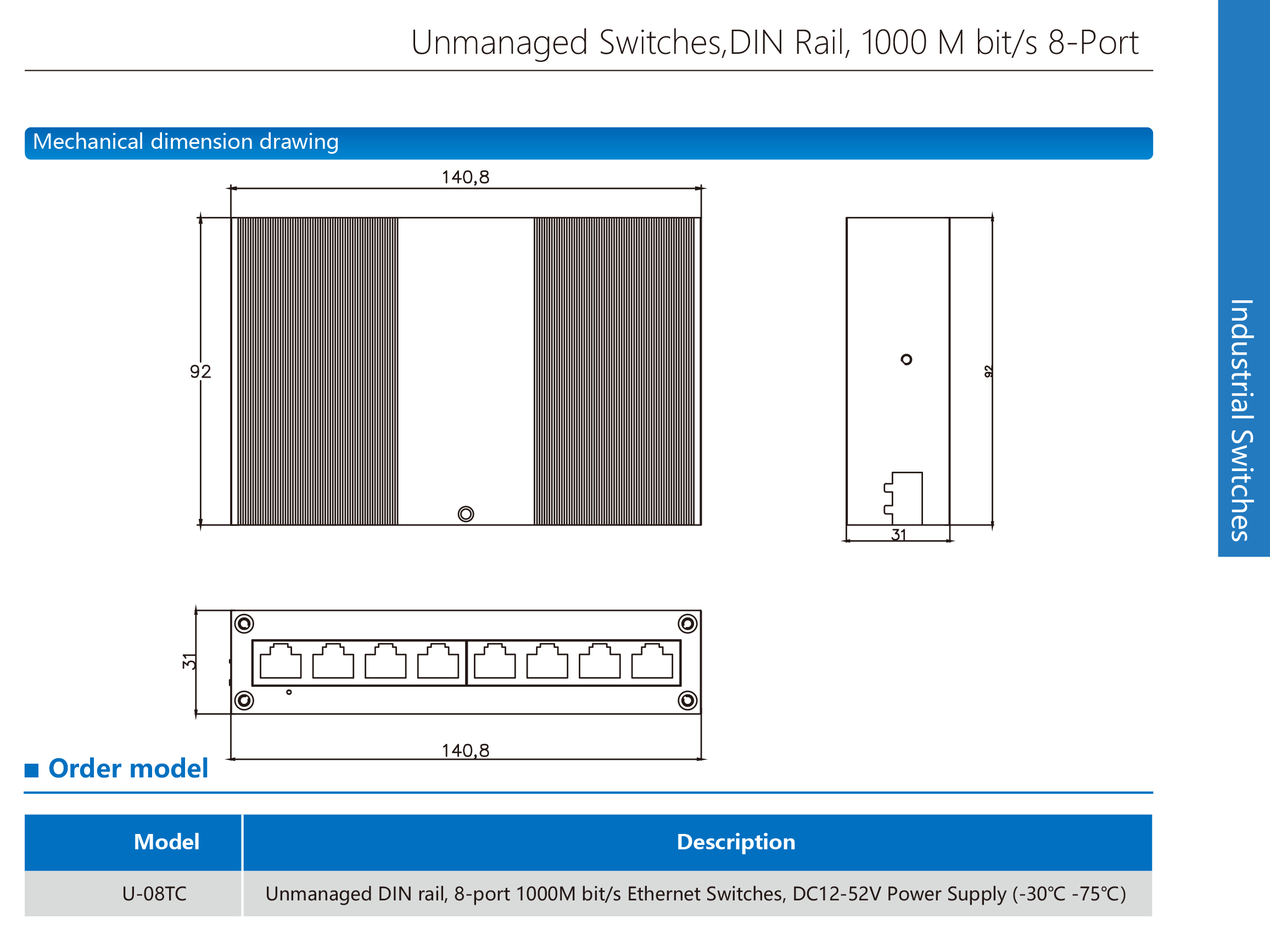

Size | 141x 89x 43mm (L x W x H) | |
Standards: | EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A EMS :
IEC(EN)61000-4-2(ESD) :±8kV contact discharge,±12kV air discharge IEC(EN )61000-4-8 Shock : IEC 60068-2-27 Freefall : IEC 60068-2-32 | |
Switch attributes | Packet buffer | 512 kbit |
MAC address table | 1K | |
Power consumption | ＜ 3w | |
LED indicator | Power indicator | PWR |
Interface indicator | Electrical port(Link) | |
Protection level | IP40 | |
Mean time between failures | 300,000 hours | |
Warranty | 3 years | |
|
|
