Model Number : | H0804FV-0 |
Price : | Negotiable |
Brand Name : | KRONZ |
Certification : | CE |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 100000 pieces per month |
Delivery Time : | 5-8 working days |

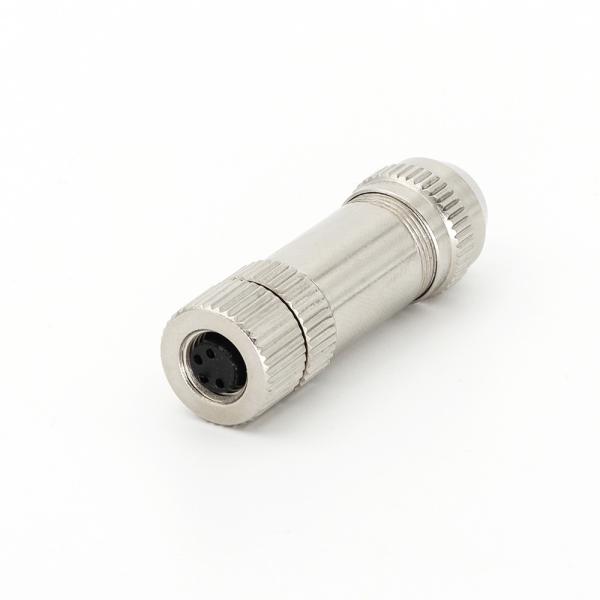

M8 Metal Connector Female Field-wireable Assembly Straight 4 Pin Connectors
Product Description
M8 connectors are ypically made from high-strength materials such as nickel-plated brass, stainless steel, or robust plastics like polyamide.The threaded locking mechanism of M8 connectors ensures a secure connection that is easy to install and remove, reducing installation time and ensuring reliable performance.
Technical Data
Standard | IEC 61076-2-104 |
Contact nut material | Brass, nickle-plated |
Contact surface material | Brass, gold-plated |
Contact carrier material | PA, black |
Housing material | Brass, nickle-plated |
Seal material | FPM/FKM |
Insulation resistance | ≥100MΩ |
Contact resistance | ≤5mΩ |
Pollution degree | 3 |
Ambient temperature | -25~+85℃ |
Mating cycles | >100 |
Degree of protection | IP67 |
Pin assignment | Connection method | Coding | Rated current | Voltage | Cable outlet | External cable diameter | Model No. |
![]() | Screw connection | A | 3A | 60V | Straight | 3.5-5mm | H0804FV-0 |
![]() |
