    PVC M12 5 Pin Female Connector With Molded Cable Straight Pre Assembled Cable

    Ask Lasest Price
    Model Number : M1205F-5/P00R
    Price : Negotiable
    Brand Name : KRONZ
    Certification : CE
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100000 pieces per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

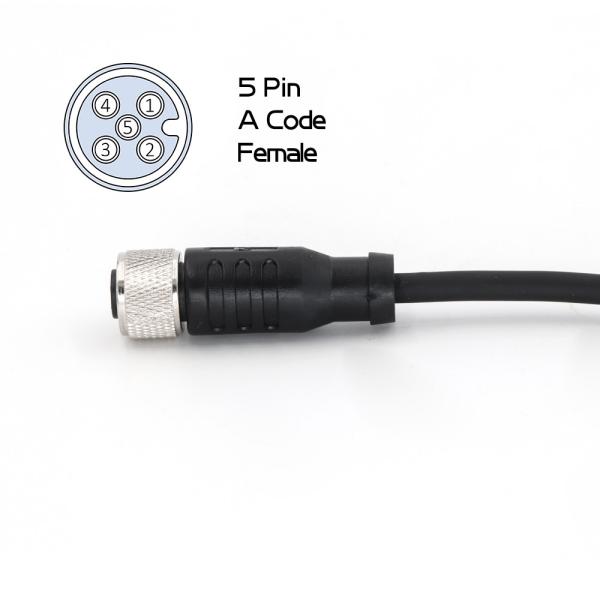

    PVC M12 5 Pin Female Connector With Molded Cable Straight Pre Assembled Cable

    M12 Connectors with Molded Cable 5 Pin Female Straight PVC Pre-assembled cable


    Product Description


    M12 connectors are also available as molded cable assemblies, offering pre-configured solutions with different cable lengths and specifications, cable specifications and sizes can be customized according to customer requirements.



    Technical Data


    StandardIEC 61076-2-101
    Contact nut materialBrass, nickle-plated
    Contact surface materialBrass, gold-plated
    Contact carrier materialPA, black
    Housing materialTPU, black
    Seal materialFPM/FKM
    Insulation resistance≥100MΩ
    Contact resistance≤5mΩ
    Pollution degree3
    Ambient temperature-25~+85℃
    Mating cycles>100
    Degree of protectionIP67

    Pin assignmentWire colorCodingRated currentVoltageWire gaugeCable outletLengthModel No.

    1=BN

    2=WH 3=BU 4=BK 5=GY

    A4A60V5x0.34 (5x22AWG) PVC, blackStraight2MM1205F-2/P00R
    5MM1205F-5/P00R
    10MM1205F-10/P00R

    *Cable length:2/5/10m,other cable lengths are available on request! Freely selectable cable material(P00R:black,PVC ,P01R:black,PUR)
