    M12 Circular Connector Female 1m Pre-molded Cable IP67 Waterproof 3 Pin A-coding

    Ask Lasest Price
    Brand Name : KRONZ
    Model Number : M1203F-1/P00K
    Certification : CE
    Price : To Be Confirm
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100000 pieces per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    M12 Circular Connector Female 1m Pre-molded Cable IP67 Waterproof 3 Pin A-coding

    M12 Circular Connector Female 1m Pre-molded Cable IP67 Waterproof 3 Pin A-coding


    Product Description

    The M12 Connector is rated for a current of 4A, which makes it suitable for a wide range of applications. It is commonly used in industrial settings, such as factory automation, robotics, and machine control. It is also used in the automotive industry and in other applications where a reliable electrical connection is essential.

    In addition to its technical features, the M12 Connector is also easy to install. The straight cable outlet makes it easy to connect to cables, and the compact design ensures that it can be used in tight spaces. This makes it a versatile connector that can be used in a wide range of applications.

    In summary, the M12 Connector is a reliable, high-quality connector that is ideal for use in industrial and automotive settings. Its A code connector design and gold-plated contacts ensure a reliable connection, even in demanding environments. With its compact design and easy installation, it is a versatile connector that can be used in a wide range of applications.



    Technical Data

    StandardIEC 61076-2-101
    Contact nut materialBrass, nickle-plated
    Contact surface materialBrass, gold-plated
    Contact carrier materialPA, black
    Housing materialTPU, black
    Seal materialFPM/FKM
    Insulation resistance≥100MΩ
    Contact resistance≤5mΩ
    Pollution degree3
    Ambient temperature-25~+85℃
    Mating cycles>100
    Degree of protectionIP67

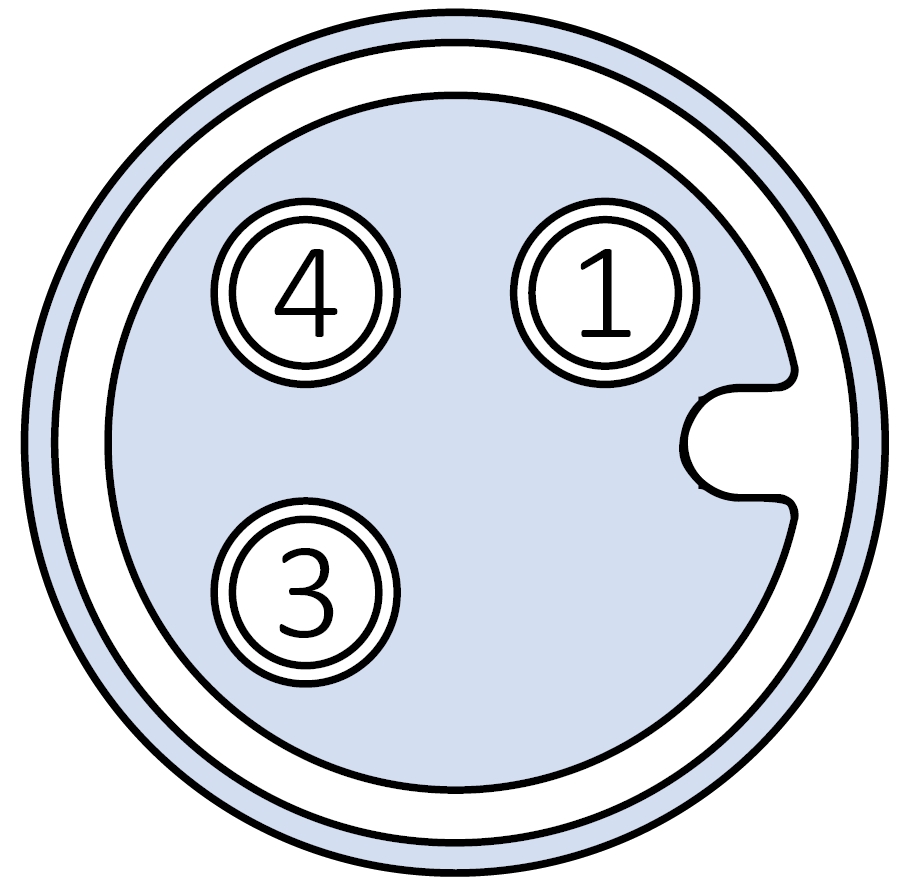

    Pin assignmentWire colorCodingRated currentVoltageWire gaugeCable outletLengthModel No.
    1=BN
    3=BU
    4=BK
    A4A250V3×0.34
    (3×22AWG)
    PVC, black
    Straight1MM1203F-1/P00K

    Applications

    The M12 Cable Connector is compatible with a range of devices, including sensors, actuators, and industrial automation equipment. The 3-pin design of the M1203F-1/P00K ensures a secure and stable connection, while the 3×0.34 (3×22AWG) PVC black wire gauge provides excellent conductivity.

    Whether you need to connect sensors or other devices in a factory, warehouse, or other industrial setting, the KRONZ M12 Male Connector is an excellent choice. The connector's rugged design and high-quality construction ensure reliable performance even in challenging environments.

    The M1203F-1/P00K is suitable for a wide range of applications, including:

    Industrial automation equipment

    Robotics

    Production line equipment

    Food processing equipment

    Pharmaceutical processing equipment

    With its flexible cable length options and robust construction, the M1203F-1/P00K is an excellent choice for use in a variety of settings. Whether you need to connect sensors or other devices in a factory, warehouse, or other industrial setting, the KRONZ M12 Male Connector is an excellent choice.


    Customization

    KRONZ M1203F-1/P00K Waterproof Connector is a high-quality M12 Cable Connector suitable for a variety of industrial applications. This M12 Circular Connector has a straight cable outlet, 3 pins, and is compliant with the IEC 61076-2-101 Standard. With a pollution degree of 3 and coding A, this M12 Connector is designed to withstand harsh environments and ensure reliable connections. Made in Guangdong, China, KRONZ M1203F-1/P00K Waterproof Connector is a dependable choice for your industrial connectivity needs.
