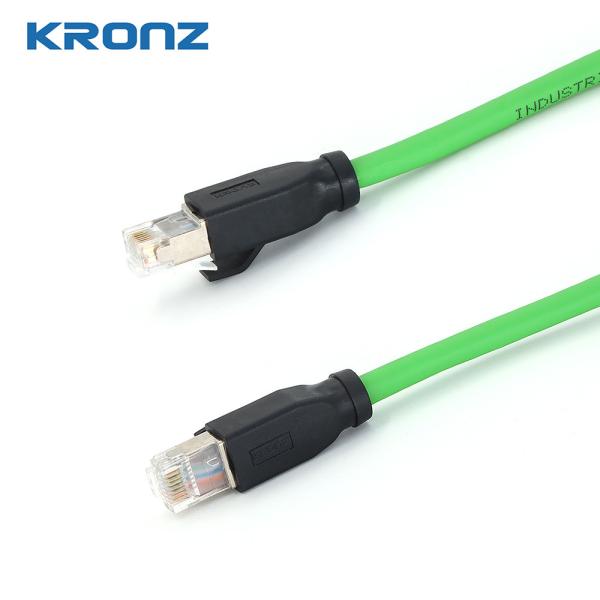

    RJ45 Connector 4 Pins 24AWG Contact Resistance 48V Customized Cable Length

    Ask Lasest Price
    Brand Name : KRONZ
    Model Number : RJ45S-3/E10K
    Certification : CE
    Price : Negotiable
    Delivery Time : 5-8 working days
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100000 pieces per month
    • Product Details
    • Company Profile

    RJ45 Connector 4 Pins 24AWG Contact Resistance 48V Customized Cable Length

    RJ45 Connector 4 Pins 24AWG Contact Resistance 48V Customized Cable Length


    Product Description

    The RJ45 Connector features a contact nut material that is made of brass and nickel-plated, which provides excellent corrosion resistance and durability. This ensures that the connector will maintain a secure and reliable connection for years to come, even in harsh environments.

    The RJ45 Connector has an ambient temperature range of -25~+85℃, which makes it suitable for use in a wide range of temperatures. This makes it ideal for use in both indoor and outdoor applications, including in industrial and commercial settings.

    The RJ45 Connector features a straight cable outlet, which makes it easy to connect your Ethernet cables. The connector has a degree of protection of IP20, which provides protection against dust and debris. This ensures that the connector will maintain a secure and reliable connection, even in dirty or dusty environments.

    The RJ45 Connector has a mating cycle of over 100, which means that it can be connected and disconnected over 100 times without losing its reliability or functionality. This makes it ideal for use in applications where the connector needs to be disconnected and reconnected frequently.

    Technical Data

    Thread typeRJ45
    Contact nut materialBrass, nickle-plated
    Contact surface materialBrass, gold-plated
    Contact carrier materialPA, black
    Housing materialTPU, black
    Seal materialFPM/FKM
    Insulation resistance≥100MΩ
    Contact resistance≤5mΩ
    Pollution degree3
    Ambient temperature-25~+85℃
    Mating cycles>100
    Degree of protectionIP20

    Pin assignmentWire colorPINRated currentVoltageWire gaugeCable outletLengthModel No.
    Pre Assembled Cable RJ45 Connector 4 Pin 48V Straight Ethernet Shielded 11 = YE
    2 = OR
    3 = WH
    6 = BU
    4PIN1.5A48V2×2×0.25,shielded
    (2×2×24AWG)
    Blueish green,
    PVC,
    OD=6.5
    Straight3MRJ45S-3/E10K

    Application

    The RJ45 Connector Cat5 is ideal for a variety of networking applications. It can be used in computer networking, telecommunication systems, and video surveillance systems. Its IP20 degree of protection ensures that it is protected from dust, debris, and other environmental factors that could damage the connector.
    With a contact resistance of ≤5mΩ, the RJ45 Connector Cat5 provides a reliable connection for high-speed data transfer. Its wire gauge of 24AWG allows for easy termination and installation.


    FAQ

    Q: Where is this product manufactured?

    A: This product is manufactured in Guangdong, China.

    Q: Does this product have any certifications?

    A: Yes, this product is CE certified.

    Q: What is the minimum order quantity for this product?

    A: The minimum order quantity for this product is 50.

    Q: Is the price of this product negotiable?

    A: Yes, we will offer different price according the quantity.

    Q: How is this product packaged?

    A: This product is packaged in polybag packing,export carton.

    Q: What is the delivery time for this product?

    A: The delivery time for this product is 5-8 working days for MOQ 50pcs, if more quantity, please contact with seller.

    Q: What payment terms are accepted for this product?

    A: The payment terms accepted for this product are T/T, Western Union, and MoneyGram.

    Q: What is the supply ability of this product?

    A: The supply ability of this product is 100000 pieces per month.
